Product Description

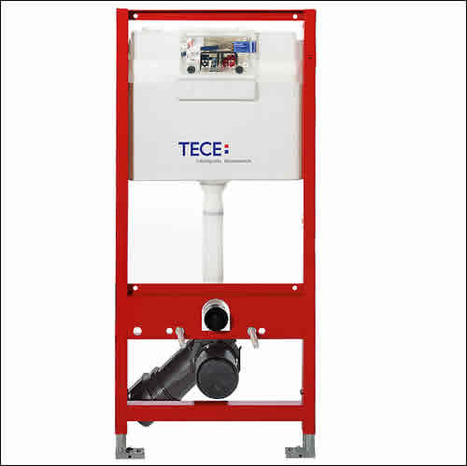

TECEprofil 9300082: Wall frame / cistern 980 mm: Front or top flush opearation

• TECEprofil toilet module with TECE cistern
• Operation from the front or above
• Height 980 mm (adjustable to 1180mm)
• for attachment to a TECEprofil curtain wall or in front of a solid wall /partition
• Completely pre-assembled unit consisting of:

• TECE concealed cistern for operation from the front or top
• Safety tank made of impact resistant plastic
• Cistern completely pre-assembled and sealed
• Angle valve and cistern connection pre-assembled
• Cistern with 1/2 "female thread
• 10-liter tank capacity
• 6 liters preset standard
• 4.5 / 7.5 / 9.0 liter flush volume, optimally adjustable
• 3 liters partial  flush with dual flush technology
• Remaining volume usable for cleaning flush
• Insulated tank to prevent condensation
• According to DIN 19542 tested certificate 7391275-01z
• Product assembly 1 according to DIN 4109 certificate P-IX3837 / I
• Low noise hydraulic fill valve LAP <= 17 dB (A) at 3 bar flow pressure module
• Self-supporting mounting frame with powder-coated finish
• Two adjustable footrests for a floor construction of 0-200 mm - two retaining bolts and nuts M 12
• Toilet pan fixings  at 180 or 230 mm - drain elbow DN 90/100
• WC connection set DN90
• including protective plug
• with depth adjustable mounting kit for wall installation

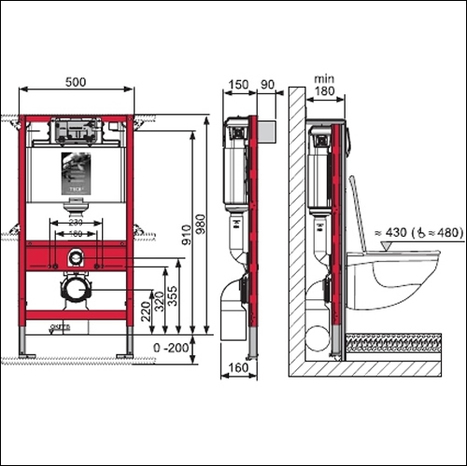

• Dimensions: 980 mm x 500 mm x 140 mm
