Product Description

Non-Electric Floor Standing Back to Wall Rimless Bidet Toilet with Soft Close Toilet Seat.

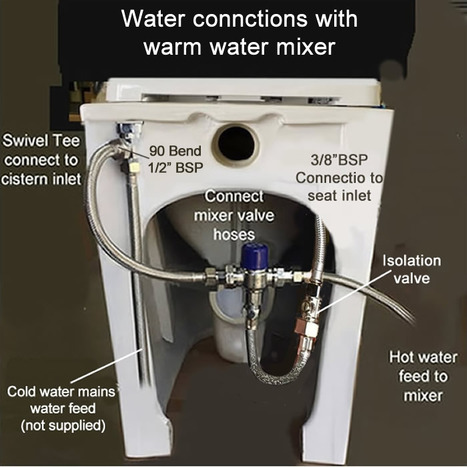

An innovative combination of a hydraulic water-powered non-electric bidet seat coupled with our exquisitely styled raised height Floor Standing Back to Wall Rimless in pure white vitreous china. We also have a standard height rimmed model available on special order, please call if you wish to purchase this model. The bidet shower toilet that washes you with fresh clean water. This comfort height model bidet toilet is around 60mm or 3" higher than a standard model making it ideal for those who experience difficulty raising and lowering themselves on to a standard height toilet. A thermostatic blending valve can be added during check-out process for a warm water wash if required. As this is a back to wall toilet it requires a concealed cistern to enable flushing of the toilet.

This manual bidet toilet is also available in Standard and Comfort Height close-coupled and Wall hung styles. Please call 01442 843746 to order any of these derivatives.

Simple to operate and user-friendly, suitable for special needs and the elderly. The seat and cover features a quick-release mechanism to make cleaning and maintenance quick and easy, the self-cleaning nozzles also activates before and after each operation for the complete hygiene solution. This raised height manual bidet toilet is a simple cost-effective means to obtain the comfort and cleanliness of a combination Toilet and bidet at a very reasonable price'

Installation Requirements

• Connection piping to the sewerage waste system.
• A cistern of your choosing for flushing the toilet.

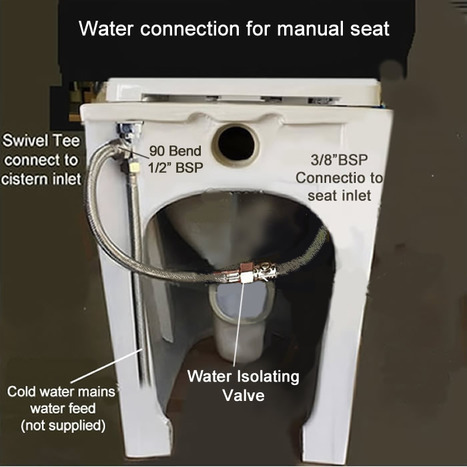

• The seat requires a mains water supply of between 0.07 Mpa (0.7 bar) and 0.75 Mpa (7.5 bar) pressure, minimum static pressure of 3 bar. The inlet for the seat water supply is on the left facing the toilet pan.
• Critical install dimensions, flush inlet center 390mm from floor, Waste pipe inlet center 170mm from floor (see dimensional diagram)
• Before Installing if you have any doubts please call 01442 843746 for technical guidance.

General Specification

Toilet Pan

• Contemporary modern design
• Made from High-Quality Vitreous China

Non-Electric Bidet Seat

• Material: Germ-resistant plastic for maximum hygiene
• Colour: White
• Fixings included escutcheon plate and blind fixing well nuts
• Single-button quick release
• Soft-close lid and seat
• No power source required, operated by hydraulic water pressure
• Stainless steel fittings
• Flexible water hose with filter & 1/4 turn ceramic core angle valve
• Self-cleaning nozzles
• When turned off, the nozzle retracts automatically ensuring that the highest level of sanitation is maintained
• Comfort Adjustable Spray- adjusts the pressure of the spray from low to high, according to the preference of each user
• T-shape connector for cistern & bidet
• Water inlet on left-hand side, facing the toilet
• Water Flow: 0.35 - 1.8 Litre minute
• Bidet Water Flow: 0.35 - 1.8 Litre minute
• Water direct from the supply
• Water Pressure Range Static pressure 1.5 - 7 Bar Dynamic above 3 Bar
• Supplied with T-shaped connector and water inlet hose
• You may view a short video demonstrating the seat's spray and controls by clicking HERE

Warranty

Seat 2 years warranty parts and labour

Toilet/cistern 5 years all parts

Please Note. To achieve Water Regulatory compliance an Approved single check valve as supplied or some other no less effective back-flow prevention device providing back-flow prevention protection to at least fluid category two as supplied must be fitted at the point of connection between the water supply and the water inlet to this appliance.

Delivery:

A standard heavy-weight courier delivery charge of £42 to mainland U.K is charged or may be picked up from our HP4 1QR warehouse,

Please select Remote delivery charge at checkout if your address is considered remote by the delivery companies such as but not limited to the Highlands and Islands of Scotland. (Please view more information by clicking the tab below for a list of locations considered "remote")

Please click for REMOTE AREA LOCATIONS

Delivery within the EU £99.90

U.K. Delivery in 2 ~ 7 days from receipt of order depending on your location.
