Product Description

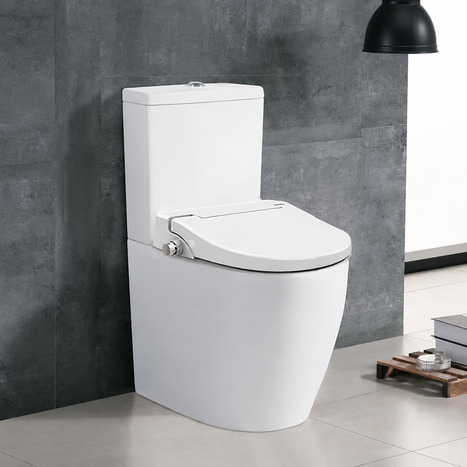

Non-Electric Extended Height Bidet Toilet with Soft Close Toilet Seat with AD Air Gap

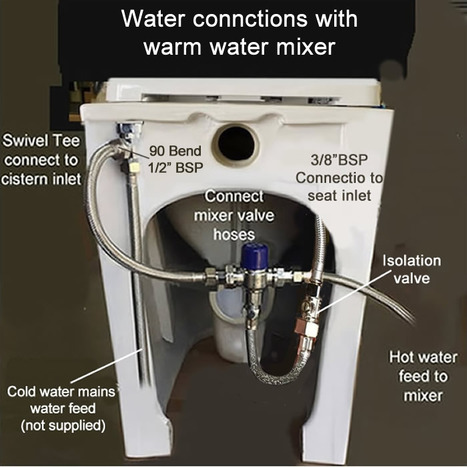

An innovative combination of a hydraulic water powered non electric bidet seat coupled with our exquisitely styled comfort height close coupled toilet in pure white vitreous china. The bidet shower toilet that washes you with fresh clean water. This comfort height model bidet toilet is around 70mm or 3" higher than a standard model making ideal for those who experience difficulty raising and lowering themselves onto a standard-height toilet. A thermostatic blending valve can be added during check out process for a warm water wash if required.

This manual bidet toilet is also available in Standard Height close coupled, Wall hung and Floor standing back to wall pan styles. Please call 01442 843746 to order any of these derivatives.

Simple to operate and user friendly, suitable for special needs and the elderly. The seat and cover features a quick release mechanism to make cleaning and maintenance quick and easy, the self-cleaning nozzle also activates before and after each operation for the complete hygiene solution. This extended height manual bidet toilet is a simple cost-effective means to obtain the comfort and cleanliness of a combination Toilet and bidet at a very reasonable price'

Installation Requirements

• Connection piping to the sewerage waste system
• The seat requires a mains water supply of between 0.07 Mpa (0.7 bar) and 0.75 Mpa (5.0bar) pressure, minimum static pressure of 3 bar. The inlet for the seat water supply is on the left facing the toilet pan.
• Before Installing if you have any doubts please call 01442 843746 for technical guidance.

General Specification

Pan and Cistern

• Contemporary modern design
• Dual flush cistern 3/6 litre Flush with Chrome Flush Button, bottom RH water connection
• Made from High-Quality Vitreous China
• Suitable for horizontal & bottom soil pipe connections, click HERE to view waste pipe
• Pan Assembly quick guide click HERE
• Click HERE to view Video demonstrating how to adjust the water fill volume and dual flush discharge volumes

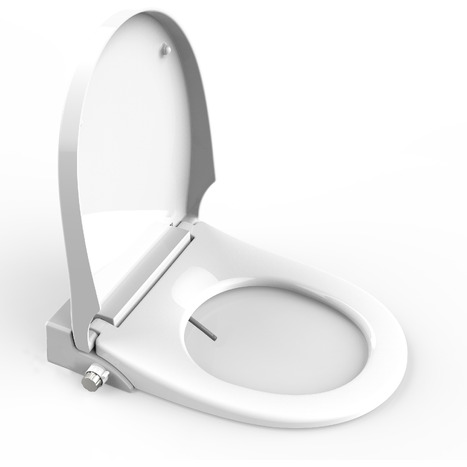

Non-Electric Bidet Seat

• Material: Germ-resistant plastic for maximum hygiene
• Colour: White
• Fixings included escutcheon plate and blind fixing well nuts
• Single button quick release
• Soft close lid and seat
• No power source is required, operated by hydraulic water pressure

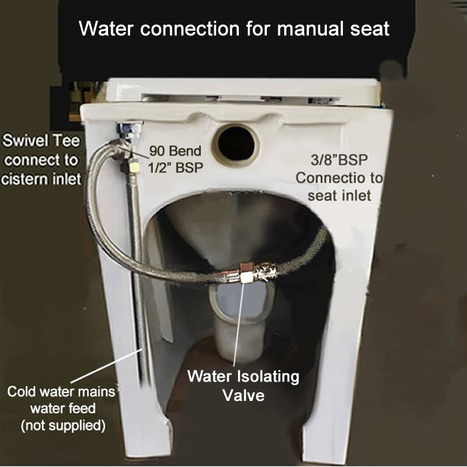

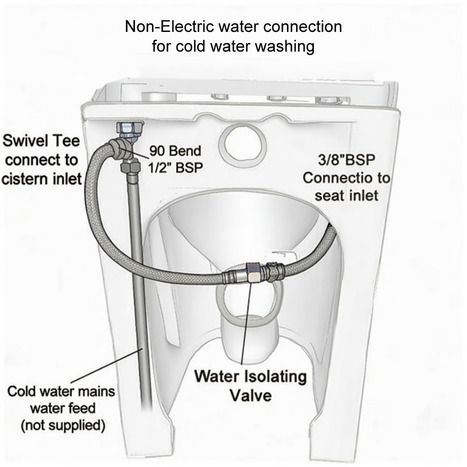

• Flexible water hose and swivel Tee connection for concealed water supply
• Self-cleaning nozzle
• When turned off, the nozzle retracts automatically ensuring that the highest level of sanitation is maintained

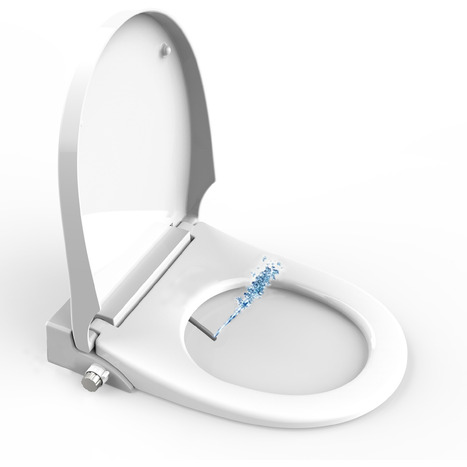

• Comfort Adjustable Spray- adjusts the pressure of the spray from low to high, according to the preference of each user
• T-shape connector for cistern & bidet
• Water inlet on left-hand side, facing toilet
• Water Flow: 0.35 - 1.8 Litre minute
• Water supply direct from the supply
• Back-flow compliant to WRAS CAT 5 (AD Air Gap)
• Water Pressure Range Static pressure 1.5 - 5 Bar Dynamic above 3 Bar
• Click HERE to view a short video of the spray functions

Warranty

Seat 2 years warranty parts and labour

Toilet/cistern 5 years all parts

Delivery:

A standard heavy-weight courier delivery charge of £48 to the mainland U.K is charged or may be picked up from our HP4 1QR warehouse,

Please select Remote delivery charge at checkout if your address is considered remote by the delivery companies such as but not limited to the Highlands and Islands of Scotland. (Please view more information by clicking the tab below for a list of locations considered "remote")

Please click for REMOTE AREA LOCATIONS

Delivery within the EU £169.90

Back order U.K. Delivery mid-August.
