Product Description

CCP-6500-SH: Bidet Shower Toilets

Product Description

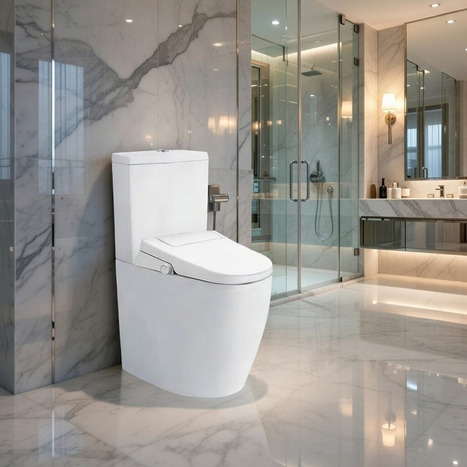

A combination rimless close coupled remote control shower toilet in pure white vitreous china. True contemporary elegance, full UK specification. An exquisite combination of our full specification remote-controlled electronic bidet seat perfectly paired with our luxurious rimless close-coupled toilet in pure white vitreous china, an absolutely stunning addition to any bathroom or toilet. The unit is also available in comfort height version which is around 70mm taller if required. View details of the Comfort Height unit.

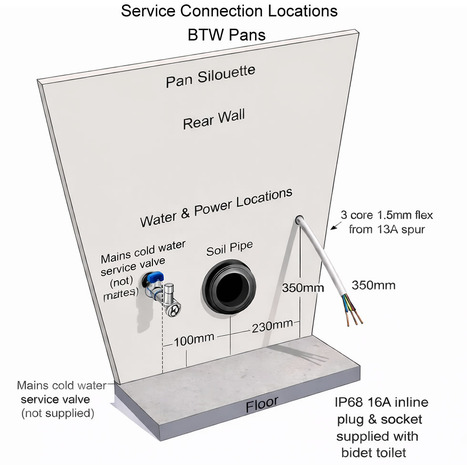

Installation Requirements

Before installing, please ensure the following requirements are met:

• Connection piping to the sewerage waste system
• A mains water supply of between 0.07 Mpa (0.7 bar) and 0.74 Mpa (7.4 bar) pressure.
• A fully compliant power source to the seat (in U.K. to BS7671) 230V 50Hz 1.7Kw max.

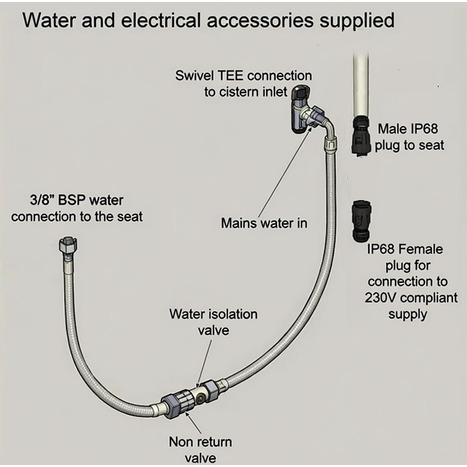

• Hidden Integrated non-visible water and power connections with quick release. View piping connections parts by clicking HERE.
• Click HERE to view a video demonstrating how to install the bidet seat and services to the toilet pan.

General Specification - Pan and Cistern

• Standard height pan, contemporary modern design
• Dual flush cistern 3/6 litre Flush with Chrome Flush Button, bottom RH water connection
• Made from High-Quality Vitreous China
• Rimless pan for enhanced cleanliness
• Suitable for horizontal & bottom soil pipe connections, click HERE to view waste pipe
• Pan Assembly quick guide, click HERE
• Click HERE to view video demonstrating how to adjust the water fill volume and dual flush discharge volumes

Key Features

• Rear wash positions
• Feminine wash
• 5 spray intensity settings (approx. 0.6L-1L per minute)
• 1-2 minute wash cycles
• 4 spray modes: Steady, Pulsating, Oscillating, Pulsating + Oscillating
• High power, 1750w instantaneous water heater
• 2 minute constant wash cycle
• 1 minute gradual cooling wash cycle
• 6 stage temperature control (approx. 31-39 degree C)
• Turbo dryer
• 350W dryer
• 3 minute standard drying cycle
• 6 dryer temperature settings (40-52°C approx.)
• 5 adjustable fan speed settings
• DESCALING programme, especially useful in hard water areas
• Hidden water and power connections
• Self-cleaning function ensures the nozzle and surrounding area are hygienic
• Pre and post wash nozzle cleaning
• Automatic water purge if not used for 72 hours
• Night light helps users with sight loss or dementia locate the toilet in the dark/dimly lit conditions
• Quiet and efficient operation promotes user dignity whilst providing a reliable experience
• Quick release seat and lid makes cleaning, maintenance, or even moving property easier
• Soft close seat and lid is slower, quieter and therefore safer for users
• Adjustable seat stability lugs provide robust stability against side shear when side transferring
• Strong load limit of 150kg/23.5st ensures the bidet is suitable for a wide variety of users
• Low pressure mode requires just 0.2 (static)-10 (static) bar to achieve a flow rate of 0.45L-0.65L per minute, with a maximum 25 second restart period
• Supplied with a 2 year manufacturer warranty
• Click HERE to view a demo of how the nozzle extends to was you with warm water

Technical Specification

• Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077
• Protection class: I
• Protection degree: IPX4
• Nominal voltage: 230 V AC
• Mains frequency: 50 Hz
• Power consumption: 2000 W
• Power consumption standby: ≤ 0.5 W
• Flow pressure: 0.5-10 bar
• Operating temperature: 5-40 °C
• Water temperature, adjustment range: 34-40 °C
• Calculated flow rate: 0.03 l/s
• Minimum flow pressure for calculated flow rate: 0.5 bar
• Spray time: 30-50 s
• Maximum load WC seat: 150 kg 23.5 stones

Dryer

• • Maximum Air Speed: 5m/S
• • Dryer Power: 280W
• • Drying Cycle Time: 3mins
• • Drying Air Temperature: 35 ~ 50°C

Remote Control

• • Frequency Range: 2460MHz
• • Maximum RF Output Power: -10dBm
• • Requires 2 x CR2032 3v Lithium Button Batteries (Not Included)

Product Specification

• RImless standard height D Shape Pan
• Pure White vitreous china pan and cistern
• Dual flush
• Seat Material :Plastic
• Seat Colour: Pure White
• Brand Aqua-Sigma
• Style Modern
• Market Domestic
• EAN Barcode 710882461034

Warranty:

2 years manufacturers warranty parts and labour,

International Certification

CE, UKCA, WRAS, EN 1717 back flow prevention, EN 62233, EN 60335, EN 13077.

Please Note. This unit contains an integral  AB airgap providing back-flow compliance to WRAS category 5 protection, as the pipework leading to the airgap may not be of food grade materials, to achieve full WRAS compliance, an ‘Approved’ single check valve or some other no less effective backflow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
